Absolute measuring system SAM

Absolute measuring system SAM

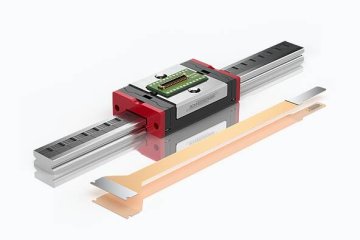

Scale lasered directly onto guide rail SCHNEEBERGER measuring system

The new SCHNEEBERGER absolute measuring system is another step into Industrial 4.0 linear bearings. 3 out of 5 Interfaces can be used simultaneously: BiSS/SSI, ABZ, UVW, SPI, analog Sin/Cos. Available from the smallest linear miniature guide MINIRAIL Size 5.


YOUR BENEFITS:

  • ALL IN ONE SOLUTION

  • SMALLEST INTEGRATED ABSOLUTE MEASURING SYSTEM

  • PLUG & PLAY

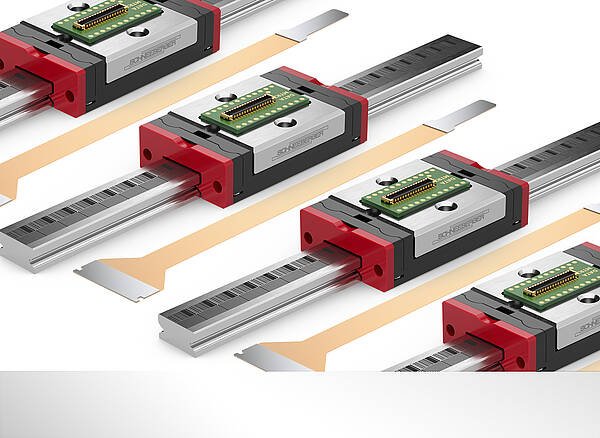

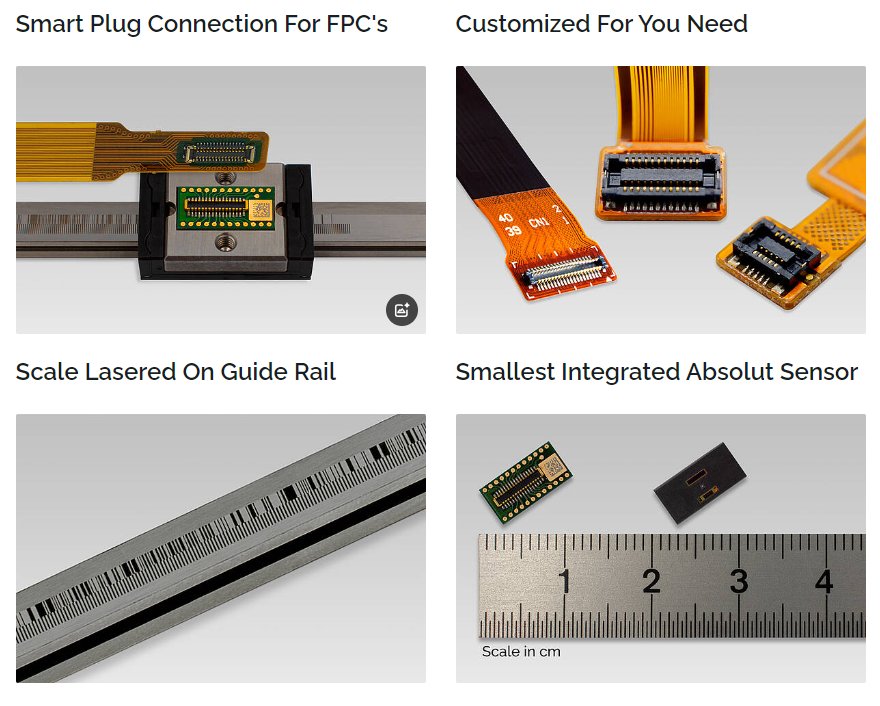

Scale lasered directly onto guide rail

  • Calibrated parameter values stored on the sensor’s internal EEPROM

  • Sensor with miniature connector

  • Customer specific flexprint design

  • Signal conditioning (offset, amplitude, phase) with autocalibration

  • Linear resolution 100 nm

  • Absolut position accuracy: < 2 μm (3-Sigma)

  • Sensor dimension: 9.9 x 5.0 x 1.1 mm

  • Patent pending
